Precomputed: regridding octahedral GRIB fieldlist¶

This example shows how to interpolate GRIB data defined on an octahedral reduced Gaussian grid using the precomputed backend. We will also see how to inspect and plot the resulting data and how to convert it to xarray.

To make this notebook work earthkit-data and earthkit-plots have to be installed. The data will be represented as a :ref:~earthkit.data.core.fieldlist.FieldList`.

Regridding¶

We perform the regridding with the regrid() method.

[1]:

import earthkit.data as ekd

import earthkit.geo as ekg

# Get octahedral reduced Gaussian GRIB data containing two fields.
ds = ekd.from_source("sample", "O32_t2.grib2").to_fieldlist()

# the target grid is a global 5x5 degree regular latitude-longitude grid
out_grid = {"grid": [5, 5]}

# perform interpolation for each field and add results
# to a new fieldlist stored in memory
r = ekg.regrid(ds, out_grid=out_grid, interpolation="linear", backend="precomputed")

d = r.data()
lat = d[0]
lon = d[1]
vals = d[2:]
lat.shape, lon.shape, vals.shape

[1]:

((37, 72), (37, 72), (2, 37, 72))

[2]:

lat[:3, 0], lon[:3, 0], vals[0, :3, 0]

[2]:

(array([90., 85., 80.]),
 array([0., 0., 0.]),
 array([251.78068542, 250.66488647, 248.92256927]))

Please note that regridding with the precomputed backend only works between a predefined set of global grids. See the Precomputed weights inventory for details.

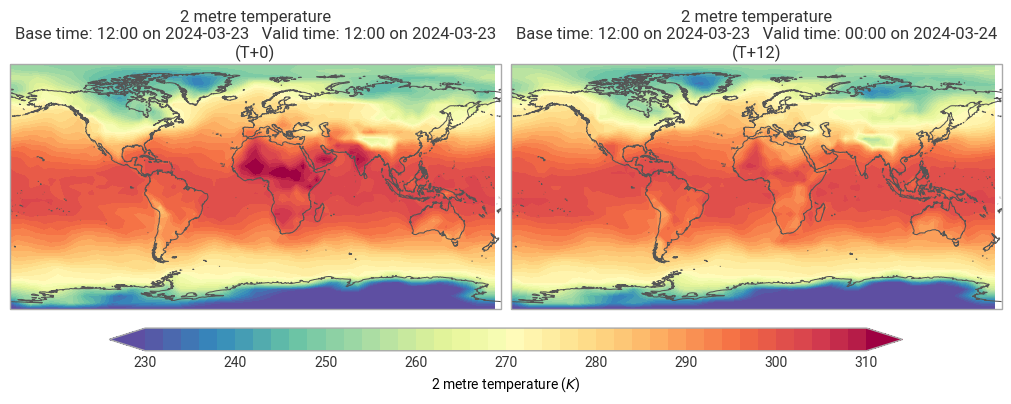

Plotting the results¶

We use earthkit-plots to visualise the results.

[3]:

import earthkit.plots as ekp

ekp.quickplot(r).show()

../../_images/how-tos_precomputed_precomp_octahedral_fieldlist_9_0.png

[3]:

<earthkit.plots.components.figures.Figure at 0x114c40c20>

Converting the results to xarray¶

[4]:

r.to_xarray()

[4]:

<xarray.Dataset> Size: 44kB
Dimensions:    (step: 2, latitude: 37, longitude: 72)
Coordinates:
  * step       (step) timedelta64[ns] 16B 00:00:00 12:00:00
  * latitude   (latitude) float64 296B 90.0 85.0 80.0 75.0 ... -80.0 -85.0 -90.0
  * longitude  (longitude) float64 576B 0.0 5.0 10.0 15.0 ... 345.0 350.0 355.0
Data variables:
    2t         (step, latitude, longitude) float64 43kB ...
Attributes:
    Conventions:  CF-1.8
    institution:  ECMWF

Writing the results to disk¶

Write the resulting fieldlist to disk:

[5]:

out_file = "_res_O32_to_5x5.grib"
r.to_target("file", out_file)
